HF-400 - Mini Excavator Cone Screw Log Splitter

HF-400 Auger Cone Splitter

HF-400 - Mini Excavator Cone Screw Log Splitter

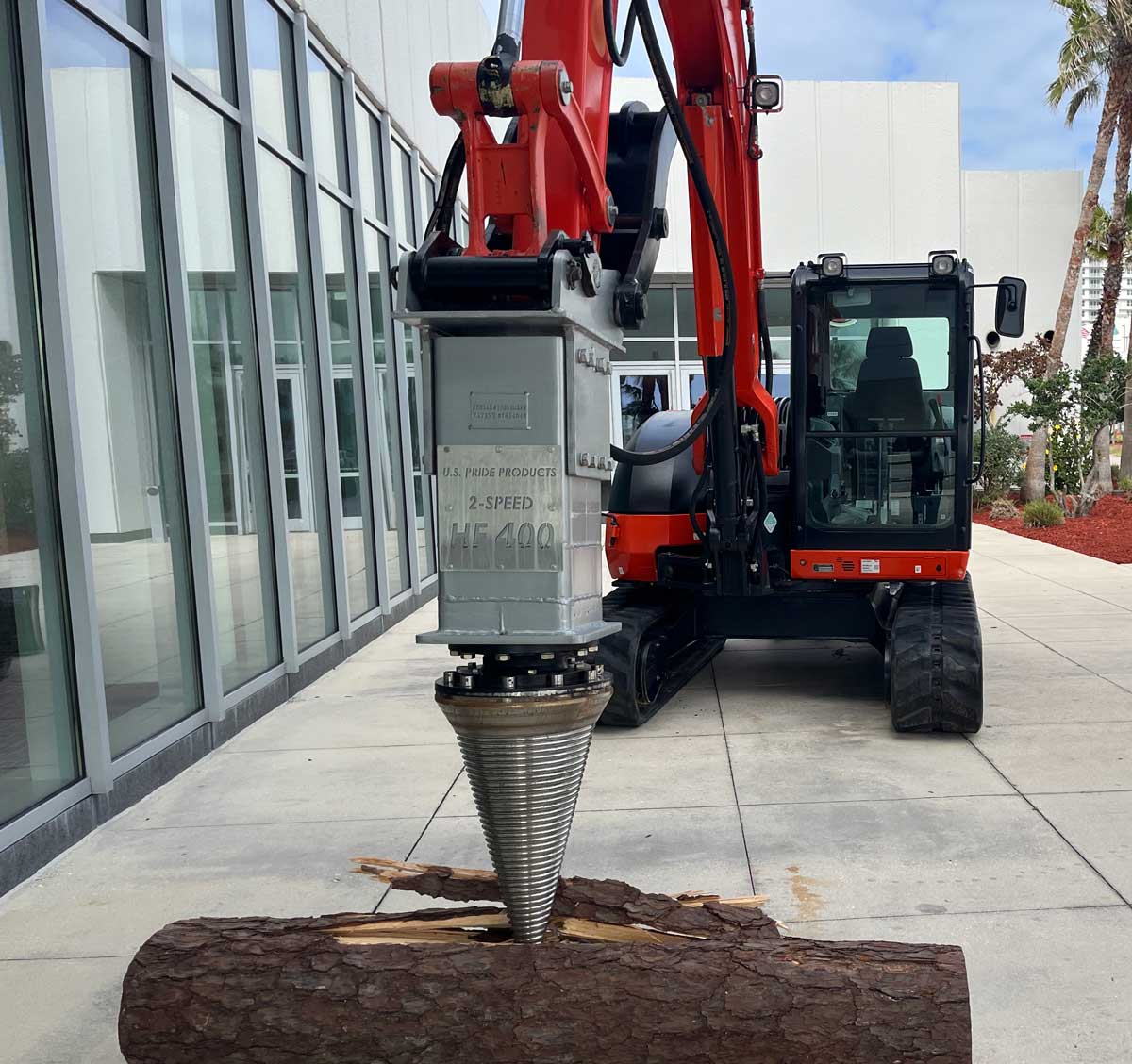

U.S. Pride Products built the HF-400 cone screw splitter specifically to perform on mini-excavators. U.S. Pride splitters are known for their legendary durability and the HF-400 will carry that legacy on. To counter some of the lateral forces that mini-excavators can put on attachments, we increased the main shaft and bearings to make sure the HF-400 is as durable as the rest of our splitter lineup. We also gave it a larger cone to increase splitting efficiency. The HF-400 can easily split 12 foot long logs all day long!

HF-400 models now available with a 2-speed motor
Utilizing a 2 speed motor allows the HF-400 splitter to power through tough wood. The motor automatically switches between speeds as needed to give more torque in the lower speed. Mini excavators vary between manufacturers and models in hydraulic flow/power. The 2-speed motor is the perfect addition to maintain splitting productivity, especially in tough wood.

Excavators of all sizes are great machines to mount our cone screw splitter attachments on. Their ability to reach over log piles and maneuverability give them an edge over other carrier types. If you would like to resize logs and stumps on your yard before you process them further, the HF-400 may be the perfect choice. Contact us at U.S. Pride Products and we'll help you determine which cone screw splitter is the best for your operation.

HF-400 Cone Splitter Now Available With Thumb Bracket
U.S. Pride now offers a thumb bracket to use in conjunction with your mini excavator's manual or hydraulic thumb. This new bracket will give your mini excavator thumb a steel bracket HF-400 With Thumb Bracketto clamp against allowing you to move material without damaging the cone splitter housing.



Commonly Used By

  • High Volume Firewood Processors
  • Mulch Producers (Large)
  • Small Land Clearing Co.'s
















HF-400 Sell Sheet Icon

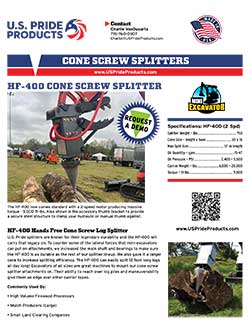

View and Download PDF Sell Sheet





Specification Chart HF-400 - 2 Spd
Splitter Weight – lbs 750
Cone Size – length x base 30 x 16
Shaft Diameter – inches 3.56
Max Split Size - length in feet     12
Oil Quantity – GPM 15-47
Oil Pressure – PSI 2,400 – 5,500
Max Torque – ft-lbs 9,500
Carrier Weight – lbs 6,000 – 20,000



If you have further questions don’t hesitate to call our main line at 715-760-0907 or contact us via our contact page
